ANAVIA HT-750 The Heavy-Lift Unmanned VTOL Drone Helicopter

The ANAVIA HT-100 is a long-range, heavy-lift remotely piloted aircraft system (RPAS) designed for autonomous flight operations across multiple applications. Deploy the most advanced remotely piloted performance helicopter to use in your operations today. AeroVision is an authorized Anavia Distributor.

15 hours
Flight Endurance
1,150 kg
Maximum Take-off Weight
222 km/h
Maximum Speed

KEY FEATURES

Unrivalled Heavy-Lift Capability

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

TECHNICAL DATA

Turbine	Gas turbo-shaft engine
Rotor	Semi-rigid 4-blade bearing-less rotor system
Typical empty weight	400 kg (882 lbs)
Fuel types	Jet A1 – other fuel types on demand (JP-8, JP-5)
Fuel consumption	60 L/h
Data link type	Fully encrypted MESH IP (limitless SATCOM, dual MIMO radios with up to 100 Mbps data rate and AES256 encryption)
Data link range	Dependant on terrain topography and national regulations - radio and antenna configuration up to 200 km
Operating temperature	-25 °C to +55 °C, -13 °F to +131 °F
Max. wind speed	Up to 56 km/h (30 kn)
Start and landing	Fully autonomous
Tank Capacity	900 litres (238 gallons)

PERFORMANCE

Max. flight time	15 hours
Max. airspeed	222 km/h (119 kn)
Max. flight mission/ payload weight	1 h / 794 kg. 4 hrs / 500 kg. 8 hrs / 360 kg. 15 hrs / 30 kg
Max. take-off weight	1,150 kg (2,536 lbs)
Max. payload and fuel	750 kg (1,654 lbs)
Operating ceiling	4,000 m (13,123 ft)

Take Mission Capability to an Entirely New Level

The ANAVIA HT-750 is built to replace missions traditionally handled by manned helicopters, offering the same grade of ISR equipment, cargo capacity, and multi-mission payloads—but with a significantly lower investment. At its core is a Swiss-engineered 15 kW turbine engine that burns just 9 litres per hour of JET A-1, JP-5, or JP-8 fuel, delivering exceptional efficiency without compromising capability. The HT-100 boasts an endurance of up to six hours per mission and can carry a maximum payload of 60 kg.

Flight Endurance For Your Operational Environment

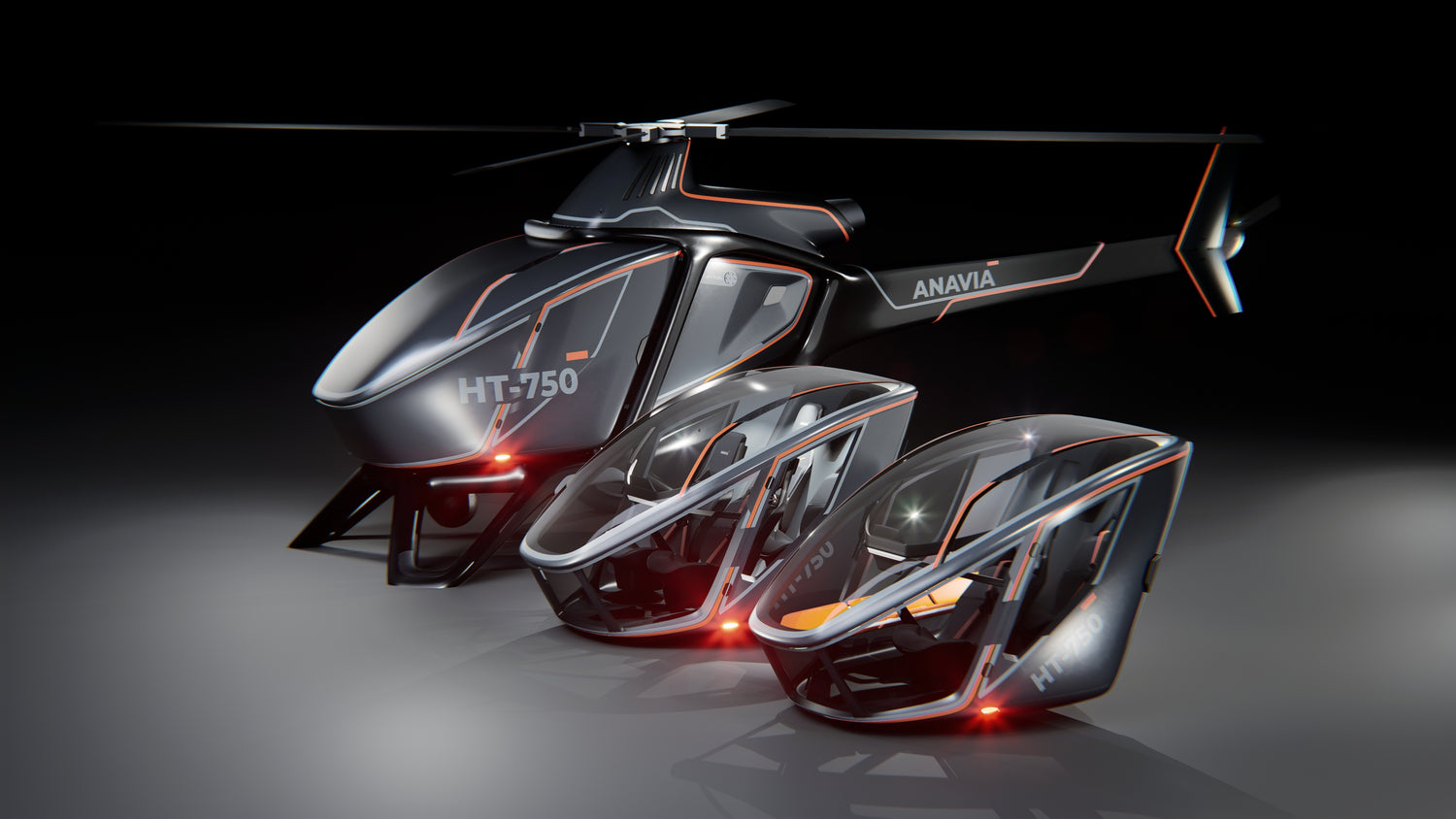

With a cruise speed of 222 km/h, the HT-750 maintains consistent performance even in extreme weather conditions. Its modular ‘plug & play’ avionics system allows for seamless integration of sensors and mission-critical equipment, making it an adaptable platform for a wide range of operations. The HT-750 redefines what’s possible in autonomous UAV missions, setting a new benchmark in performance, versatility, and reliability.

Support & Payload Capabilities That Meet Your Demands

The ANAVIA HT-750 is engineered for maximum reliability, efficiency, and longevity, starting with its dual inter-meshing Flettner main rotors that eliminate the need for a tail rotor, reducing vibration and enhancing stability. Its full carbon composite structure ensures a lightweight, durable airframe designed for high performance in demanding environments.

Frequently asked questions from our customers

Is the HT-750 Subject to ITAR Regulations?

No! The Anavia HT-750 is ITAR-FREE, meaning that it is not subject to the restrictions and regulations of The International Traffic in Arms Regulations by the U.S. Department of State.

Where does the Anavia HT-750 excel?

The ANAVIA HT-750 excels in high-endurance, heavy-lift unmanned missions where precision, reliability, and cost-efficiency are critical.

The ANAVIA HT-750 redefines unmanned aerial operations with its unmatched endurance, heavy payload capacity, and long-range capabilities. Designed for missions traditionally flown by manned helicopters, this Swiss-engineered VTOL system delivers superior intelligence, surveillance, and reconnaissance (ISR), cargo transport, and multi-mission adaptability.

Unrivalled Heavy-Lift Capability

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

What is the practical difference between the Anavia HT-750 and other conventional helicopters or drones?

Simply put: operational capabilities of the Anavia HT-750 are far above that of conventional, electric drones or remotely piloted aerial vehicles on the market today. This is immediately demonstrated in terms of the difference in flight endurance, payload capacity, and operating conditions.

Unrivalled Heavy-Lift Capability

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

What options are available for payload?

The Anavia HT-750 has capabilities to support payloads for any flight mission. Download our Anavia HT-750 whitepaper below or contact us today to find out more or schedule a presentation.

Unrivalled Heavy-Lift Capability

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

How does my team get trained on the HT-750?

Download our Anavia HT-750 whitepaper or contact us today to find out more.

Unrivalled Heavy-Lift Capability

Carries payloads up to 750 kg, setting a new benchmark in unmanned aviation.
Long-range autonomous operations, ideal for ISR, logistics, and tactical deployments.
Optimised for extreme conditions, ensuring mission success in demanding environments.

Next-Generation ISR & Mission Flexibility

Advanced sensor integration: EO/IR, SAR, SIGINT, LiDAR, and hyperspectral imaging.
Autonomous multi-role operations for defence, border security, disaster response, and more.
High-performance Swiss engineering, ensuring reliability, precision, and efficiency.

Built for Global Deployments

Designed and manufactured in Switzerland, with an uncompromising focus on quality.
Robust airframe and rotor system, ensuring safety and stability in the toughest conditions.
Multi-mission versatility, ready to excel in military, commercial, and humanitarian operations.

The HT-750 is the ultimate heavy-lift unmanned VTOL system, delivering next-level capability, endurance, and mission success—whenever and wherever it's needed.

Is in-country support and MRO provided for the HT-750?

Generally, yes, AeroVision is able to provide in-country MRO and program support for your flight operations of the HT-750.

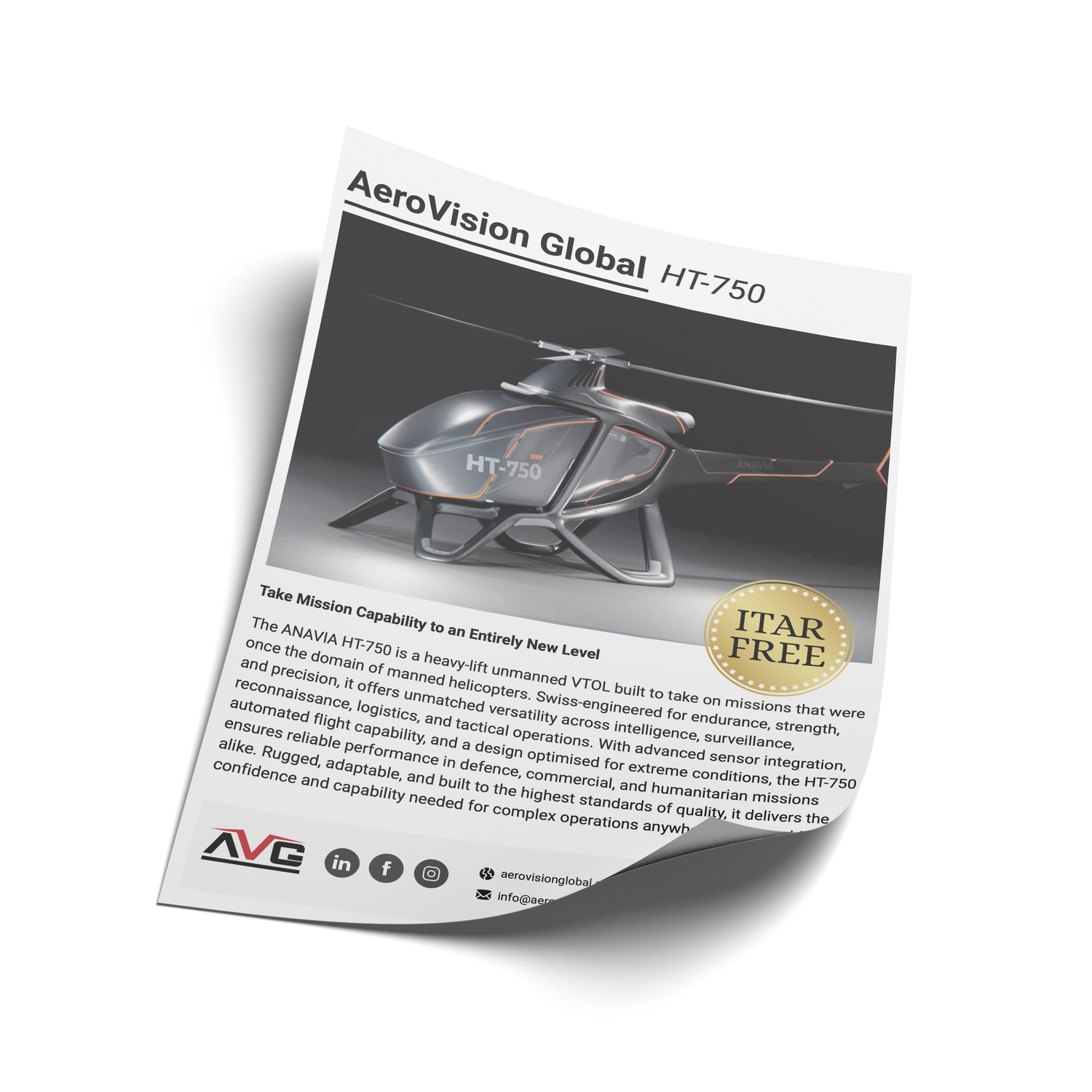

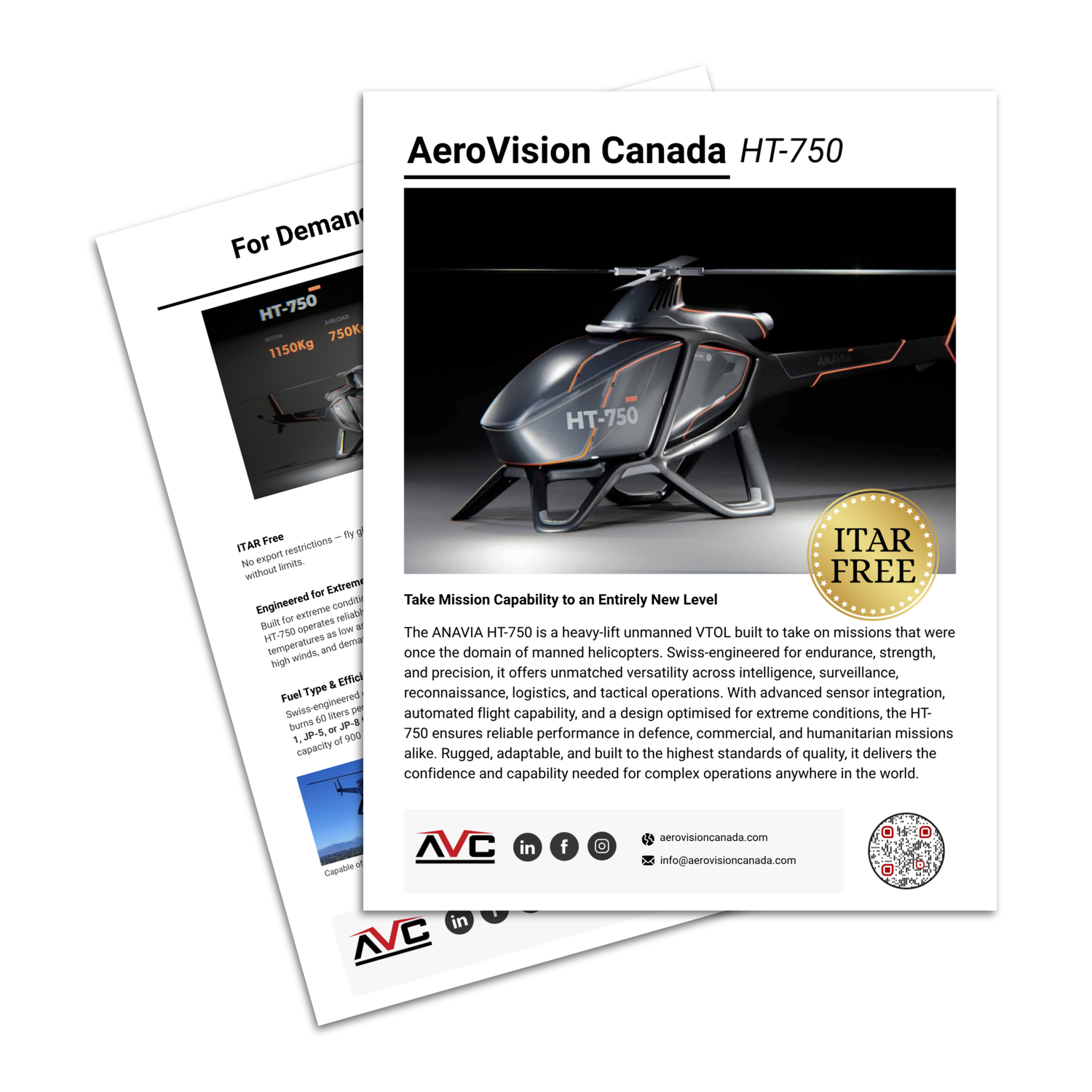

Download Our Highlight Sheet

Want more information on the Anavia HT-750? Click below to download our highlight sheet to learn more about the capabilities of the HT-750.

DOWNLOAD NOW
