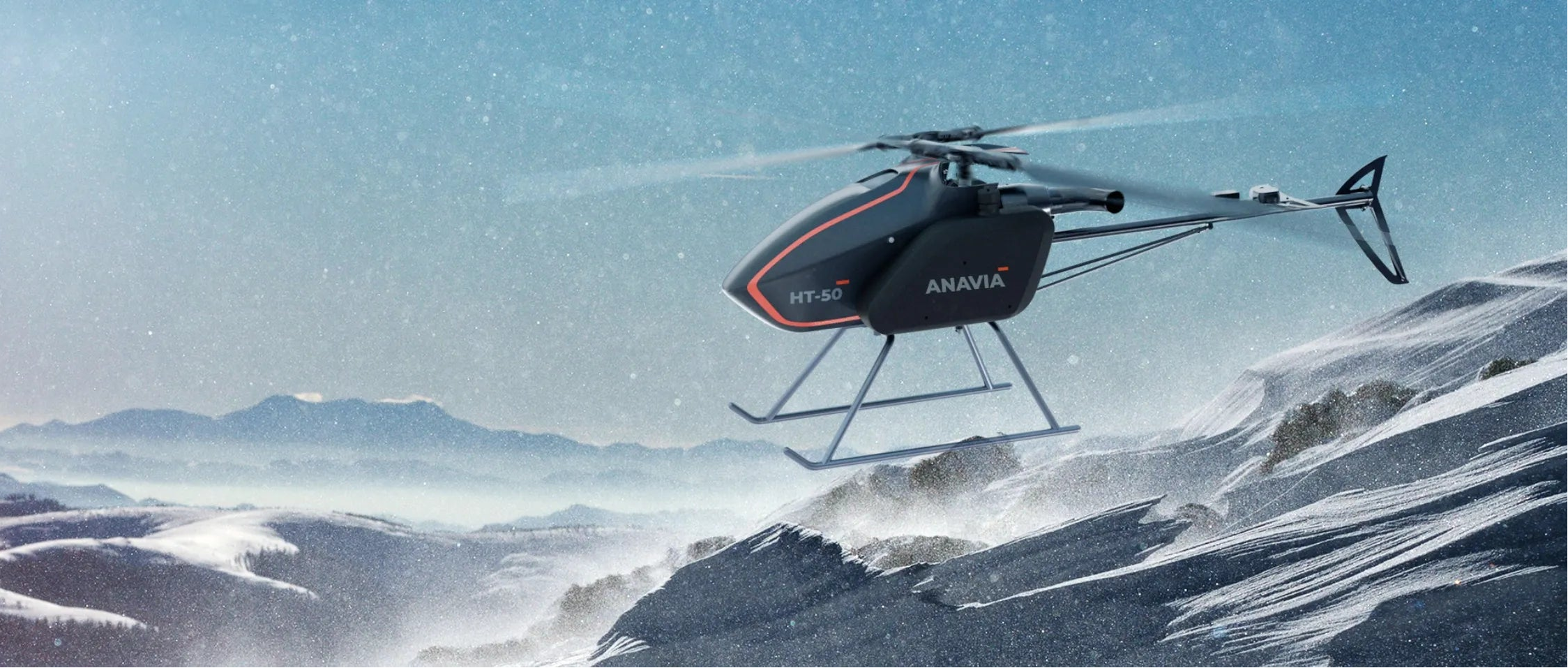

ANAVIA HT-50 Essential Training Platform HT-100 Pilots

The ANAVIA HT-100 is a long-range, heavy-lift unmanned aerial vehicle (UAV) designed for autonomous flight operations across multiple applications. Deploy the most advanced unmanned performance helicopter to use in your operations today. AeroVision is an authorized Anavia Distributor.

1.5 hours
Flight Endurance
50 kg
Maximum Take-off Weight
20 kg
Maximum Payload

KEY FEATURES

With the HT-50, pilots learn to navigate all aspects of HT-100 UAV operations, including:

Flight control systems identical to the HT-100.
Dual inter-meshing Flettner rotor system for enhanced stability and efficiency.
Advanced navigation and avionics systems, mirroring real-world mission environments.
Ground control station simulation, providing a realistic command experience.

By integrating the HT-50 into training programmes, operators reduce risks, improve efficiency, and enhance mission readiness—ensuring seamless adaptation to the HT-100 unmanned helicopter.

TECHNICAL DATA

Turbine	15 kW shaft turbine
Rotor	Flettner double rotor system
Typical empty weight	65 kg (143 lbs)
Fuel types	Jet A1 – other fuel types on demand (JP-8, JP-5)
Fuel consumption	9 l/h
Data link type	Fully encrypted MESH IP (SATCOM and LTE on demand)
Data link range	Radio and antenna configuration up to 200 km (depending on terrain topography and national regulations)
Operating temperature	-25 °C to +55 °C, -13 °F to +131 °F
Max. wind speed	45 km/h (25 kn)
Start and landing	Fully autonomous

PERFORMANCE

Max. flight time	360 minutes
Max. airspeed	120 km/h (65 kn)
Max. flight mission/ payload weight	1 hrs / 51 kg, 2 hrs / 43 kg, 4 hrs / 28 kg, 6 hrs / 14 kg
Max. take-off weight	120 kg (264 lbs)
Max. payload and fuel	55 kg (121 lbs)
Operating ceiling	(max. density altitude) 4,000 m (13,123 ft)
